Fixed installation solution

1. Program Features:

(1) Using high refresh IC, truly realizes high refresh rate and high gray, making LED display image more realistic & satisfying business high visual quality requirements.
(2) Utilizing Low-power-driven ultra-bright LED, reached outdoor any brightness application of the environment.
(3) Photosensitive control system, timing and brightness adjustment function, according to changes in outdoor light automatically adjust LED display brightness, and depending to different time timing adjust LED display brightness , for energy saving and reducing operating costs;
(4) Display environmental monitoring system, through software monitoring page, can anytime grasp the display operation status;
(5) Periodically or remote real-timely, control switch of LED displays;
(6) Support network clustering control function, can in one place control global display, randomly change the broadcast content;
(7) Use PFC power supply, reduce the interference on the power grid, more high conversion efficiency, more energy-efficient;
(8) According to the characteristics of outdoor environment, designed with a reliable protection rating, the entire screen thermal design, strict manufacturing process enables the long time stability;
(9) Intelligent power-up system can timer switch the entire LED display power supply, making LED display operate safer, more energy-efficient.

2. System topology:

20160330180450_13790





3. Equipment and accesories

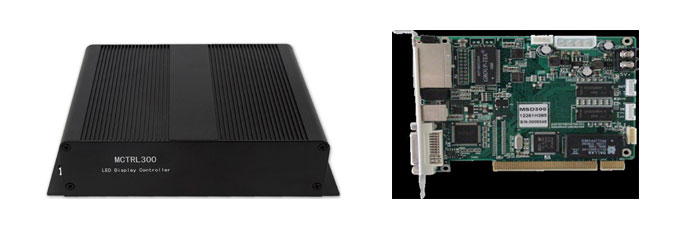

(1) LED controller or sending card;

20160406160645_47308

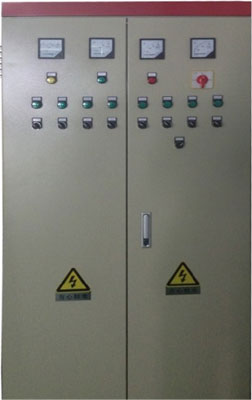

(2) power distribution box (ordinary and intelligent can be choose );

20160406160717_16205

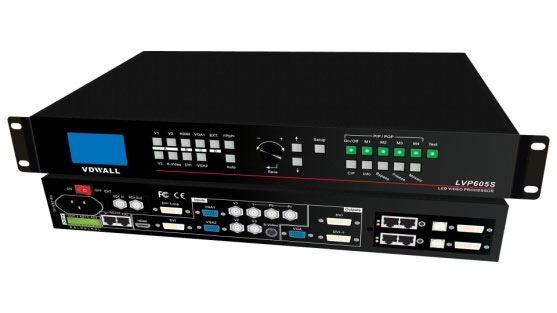

(3) Video processor (optional);

20160406160737_44942

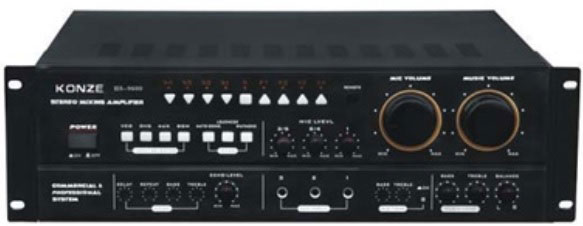

(4) Audio Amplifier and Speaker box (optional)

20160406160821_82793

20160406160841_90471

(5) Computer

20160406160906_33506





4. Application fields

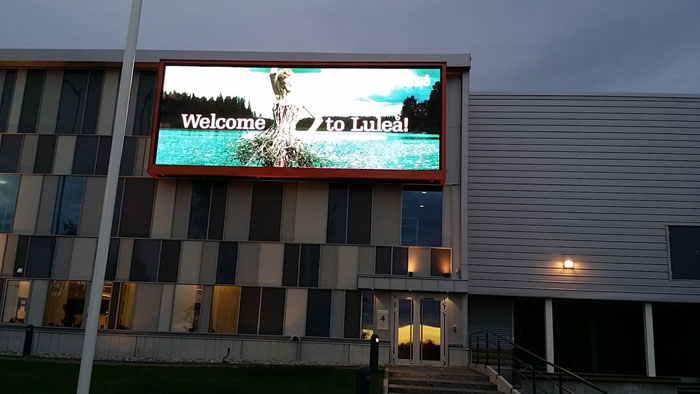

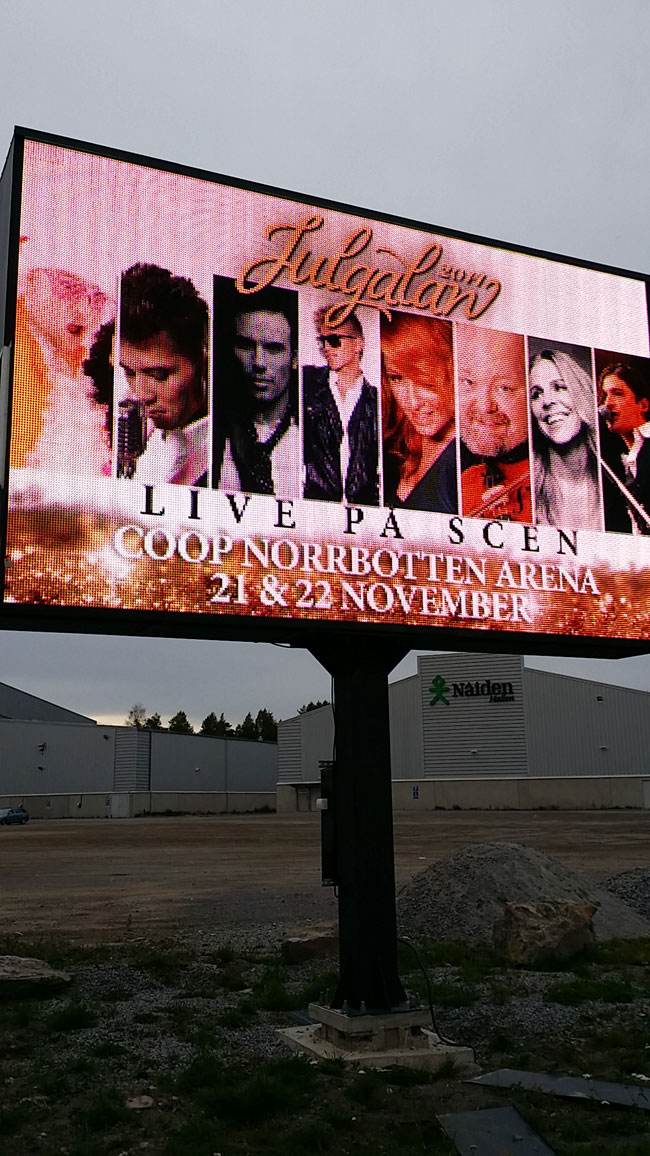

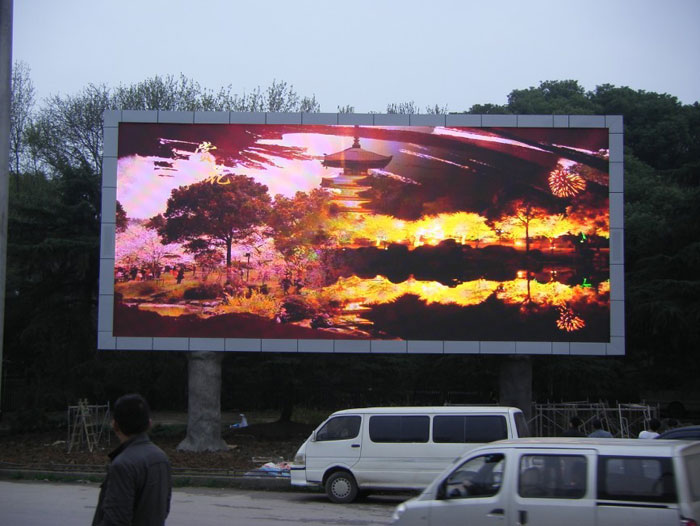

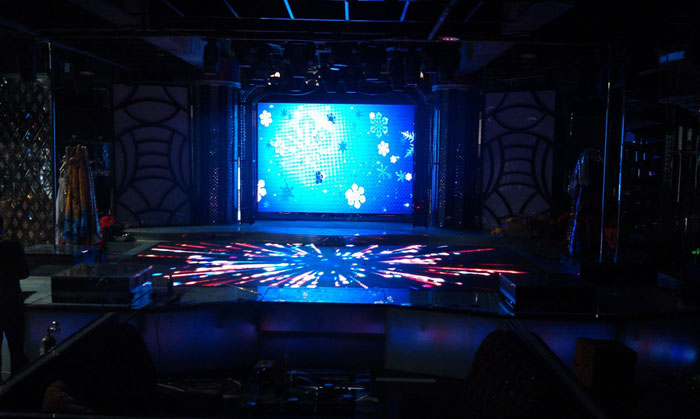

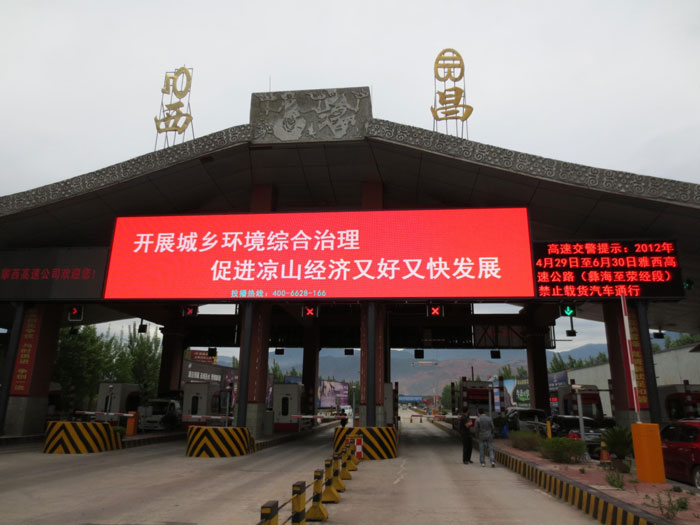

Outdoor and indoor advertising media, stage performance, information board

20160406160947_79821

20160406161005_55176

20160406161020_80026

20160406161034_52810

20160406161043_35109
