BRIC-LINK

Comrex의 BRIC-Link는 오디오 신호를 IP로 변환할 수 있는 저가의 고성능 솔루션입니다. Comrex의 핵심 제품인 ACCESS 시리즈의 핵심적인 기술을 기반으로 한 BRIC-Link는, 연속적인 혹은 압축된 낮은 Delay의 오디오 신호를 문제없이 연결시켜 주는 역할을 합니다. BRIC-Link는 사용하기 간편하며, 광대역의 IP링크를 통해 사용이 가능합니다. 저가의 장비이지만, 최상의 오디오 사양과 하드웨어에 대한 높은 신뢰성을 가진 BRIC-Link는, 불필요한 Codec들에 까지 비용을 부담해야 하는 타 제품과는 달리, STL과 핵심 기능만을 위한 최적의 시스템입니다. BRIC-Link는 작은 데스크톱 패키지로 구성되어 있습니다. 두 개의 BRIC-Link를 1U 사이즈의 렉에 설치하여 사용할 수 있습니다.

Applications

BRIC-Link는, 고품질의 오디오 신호를 ISM band, IP radios, T1/E1, 위성 채널, WAN 그리고 LAN같은 다양한 데이터 네트워크를 통해 직접 연결하도록 만들어 졌습니다. BRIC 기술의 안정성은 AAC 압축모드를 사용하여 Public Internet에서도 적용되고 있습니다.

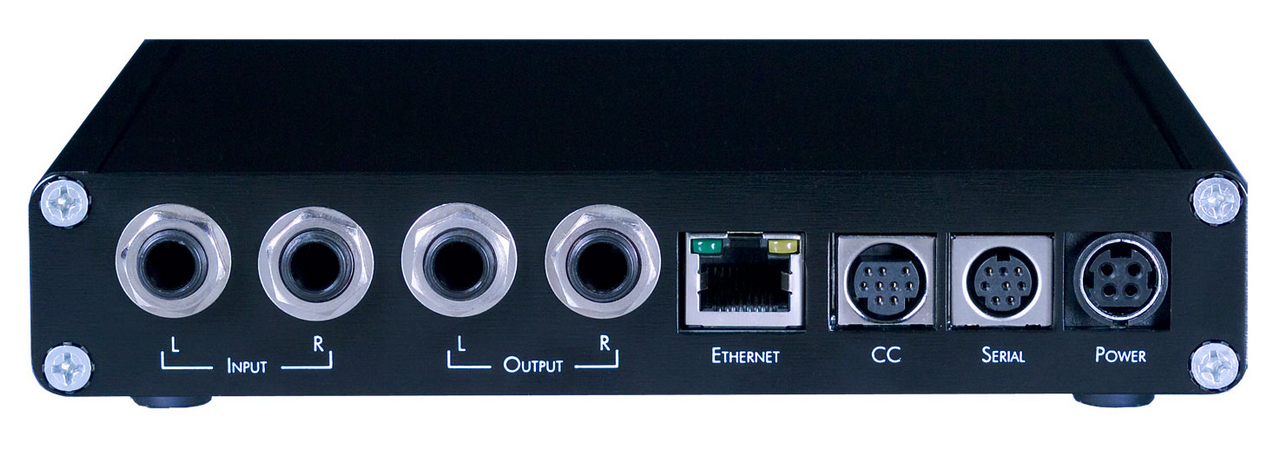

briclink_rear

Specifications

Audio Connections

Balanced stereo 1/4″ TRS line-level audio input – 0dBu
Balanced stereo 1/4″ TRS line-level audio output – 0dBu
AES3 1/4″ TRS Digital audio input (through left TRS input when switched)
AES3 1/4″ TRS Digital audio output (through left TRS output when switched)
Unbalanced stereo 1/8″ line-level audio input
Unbalanced stereo 1/8″ line-level audio output

Other Connections

Ethernet Port : 10/100 BaseT
Contact Closures : 9-pin mini DIN
Serial Port : 8-pin mini DIN
Power : 4 pin connector for external 24V DC supply

Audio Levels

Balanced audio input level : 0 dBu
Balanced audio output level : 0 dBu
Unbalanced audio input level : -10 dBv
Unbalanced audio output level : -10 dBv
Full scale : 20dB above nominal

Power & Physical

외부전원장치 : 24V DC 20 Watts
Size (W x D x H) : 165.1 x 165.1 x 35 mm
Weight : 1.5 lbs (0.68 kg)
